Description

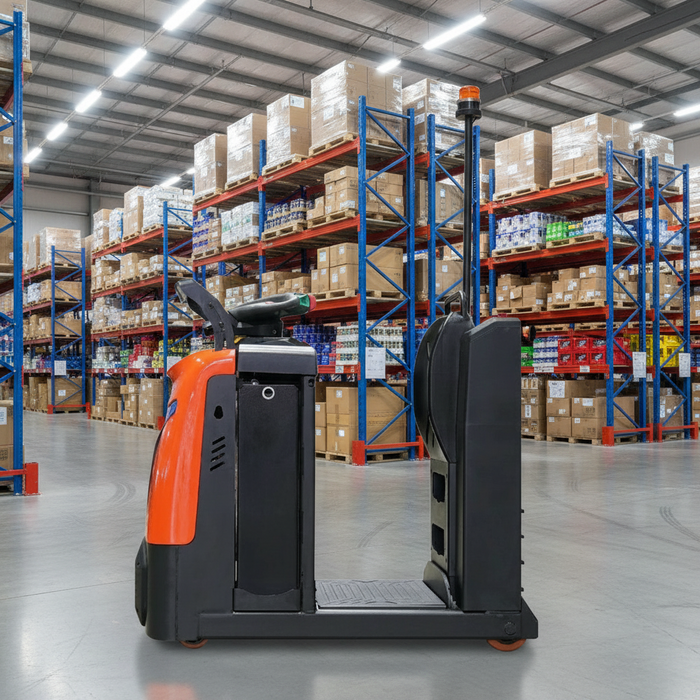

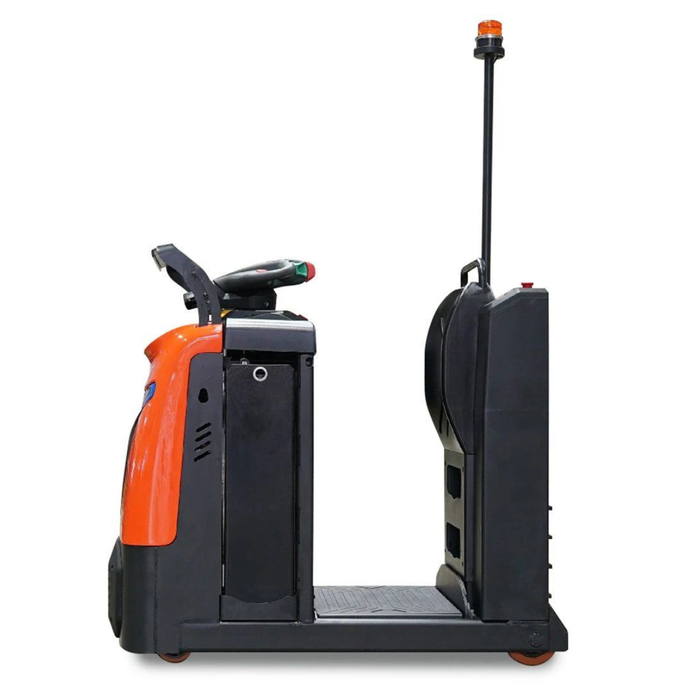

Noblelift T66N/T110N | Tow Tractor | 6600/11000 lbs Towing Capacity
The T66N-T110N electric rider tugger/tow tractor series offers capacities ranging from 6,600 lbs to 11,000 lbs and is engineered for heavy-duty applications. This equipment is perfectly suited for moving large loads efficiently over long distances within a facility. It features a tight turning radius and is narrow enough to pass through most standard door openings. This makes it an ideal choice for manufacturing plants, warehousing, loading docks, and various other industrial applications.
This ergonomic tugger is equipped with multiple safety features and high-quality international components, including a German Schabmueller maintenance-free AC Drive motor coupled with a German Kordel gearbox, an Italian ZAPI Controller for both driving and steering, and a Rema tiller head. The tugger’s high travel speed capability allows operators to move significantly more product in less time.
| Model |
Drawbar (lb) |
Turning Radius (in) |
Weight (lb) |
| T66N |
6,600 |
52.5 |
2,094 |
| T110N |
11,000 |
52.5 |
2,249 |
Features:
Generous Platform and Comfort
The spacious platform with a suspension system and soft foamed rubber mat ensures maximum operator comfort throughout the day. The operator backrest provides a high level of side support to accommodate operators of different heights. The backrest material ensures maximum grip to hold the operator securely. Multiple trays provide a convenient place for work equipment. An Emergency power disconnect is included for safety.
German AC Drive Technology
The powerful German Schabmueller maintenance-free AC Drive motor, combined with the German Kordel gearbox, delivers superior performance, efficiency, and reliability, reducing running costs while providing gentle or fast acceleration.
German REMA Multi-Functional Tiller
The REMA tiller provides precise control over acceleration, deceleration, and driving performance, and automatically returns to the neutral position when released. Features include dual butterfly-style thumb controls, a jog button, a Crawl speed button, and horn functions.
Multi-Function Instrument Control
The multi-function instrument control can display the vehicle working status, battery power, working time, driving speed, and steering angle. Fault codes simplify maintenance diagnostics. PIN-code panel and RFID-card systems control operator access. A Blue-Ray Light helps to increase safety during operation.
Convenient Features
Equipped with two USB connectors for charging additional devices during operations. Side battery extraction with rollers at the battery compartment makes battery replacement fast, allowing the vehicle to be used for multiple shifts.
Ease of Maintenance
Easy access to all key components simplifies maintenance and reduces required time. A Diagnostic Access Point, located in the battery compartment, simplifies diagnostics, improves reliability, and reduces downtime.
Available Optional Upgrades
Available Optional Upgrades
This model supports optional configurations (please see below). If you require a customized setup, please contact us for compatibility and pricing.
- 24V/300Ah Lithium LFP battery 24V/150A Industrial charger
Specifications
Specifications
| MODEL |
T66N |
T110N |
| Unit Type |
Rider Electric Tugger |
| Load Capacity |
6,600lb |
11,000lb |
| Power |
24V / 375Ah Battery |
24V / 465Ah Battery |
| Battery Charger |
24V/60A Charger 110V |
| Turning Radius |
52.5" |
52.5" |
| Travel Speed |
| With Load |
3.7 mph |
4.34 mph |
| Without Load |
5.6 mph |
7.45 mph |
